MMB Wi-SUN Border Router

Key Features

  • Contains MMB’s latest FAN 1.0 Wi-SUN Module

  • Opto-isolated general purpose IOs plus RS232 and RS485

  • Create a Wi-SUN network and connect up to 1000 nodes to this single device

  • Din rail mountable

Get the Specs



Specs

  • Dimensions: 130 mm x 93 mm x 49.6 mm
  • Temperature Range (Operating): -20 to +60 °C
  • Power Supply: 12-24V AC; 2A.  |  9-36V DC; 2A
  • CPU Core: 4-core Raspberry Pi CM4
  • RAM/Memory: 4GB
  • Storage: 32GB
  • Network Interfaces:

      Ethernet: 1000M RJ45 x2
      RS Serial: RS485 x3 (Isolated)
      Wi-SUN: Mini-PCIe support for Wi-SUN FAN 1.0
      4G/LTE: Mini-PCIe support for Quectel EG25

  • Other Interfaces:

      • DO: 2 (Isolated)
    Output voltage – under 60 V,
    current capacity – 500 mA

    • 2x isolated DI; 2x isolated DO
    • 2x USB2.0 A1
    • M.2 slot support
    • 1x HDMI 2.0 up to 4k@60fps

Overview

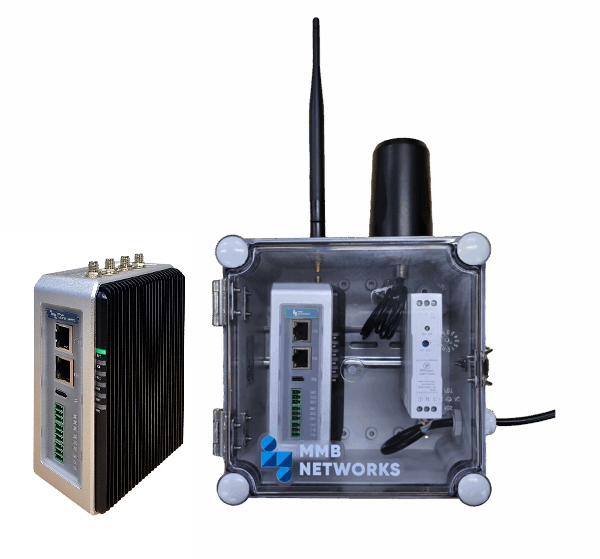

The MMB Wi-SUN Border Router is an industrial, Din rail mountable, single board Linux computer that contains MMB’s latest Wi-SUN Module. This device can join up to 1000 Wi-SUN nodes to this single Border Router.

The Backbone of Your Field Area Network

Every resilient mesh network needs a reliable anchor. The Border Router acts as the critical bridge between your mesh nodes and your core network or cloud infrastructure. In this video, we explore how MMB’s Border Router manages high-throughput data routing, enforces network security protocols, and ensures constant uptime for mission-critical utilities.

Key Takeaways:

  • Seamless translation between IPv6 mesh traffic and wide-area networks (WAN).

  • Advanced security architecture to protect the edge of your network.

  • Enterprise-grade hardware built for rugged infrastructure.
